VCC007 Hidden trailer hitch for 2010 -newer Victory Cross Country models
There are times when you need to bring some of the comforts from home on the road with you but some things are too large, or too numerous, for the storage on your motorcycle. Installing the VCC007 hidden hitch with vertical receiver on your motorcycle allows you to tow a trailer full of comforts from home.

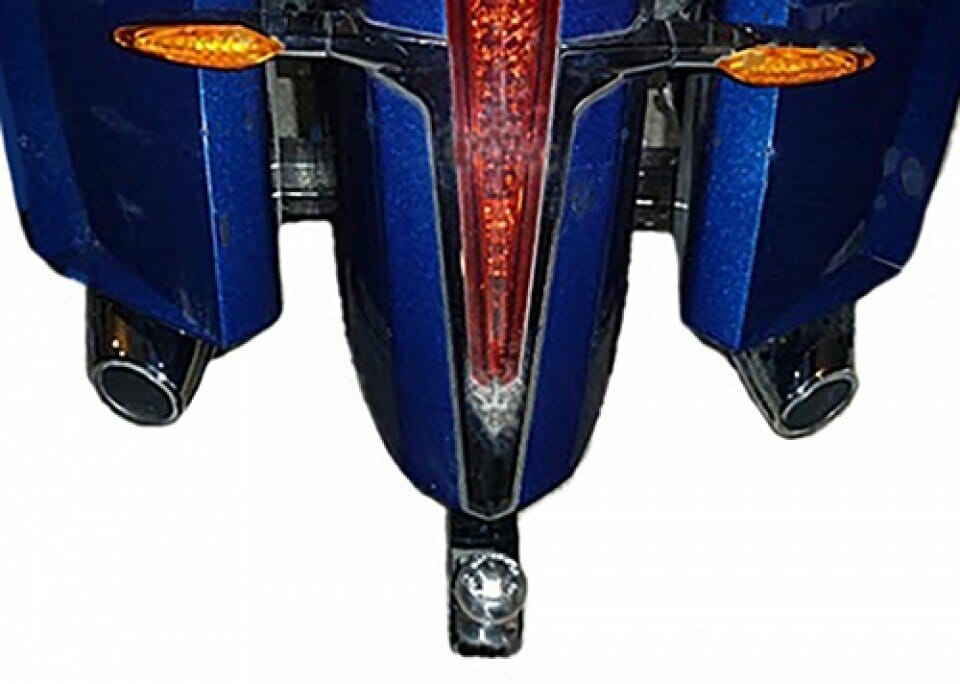

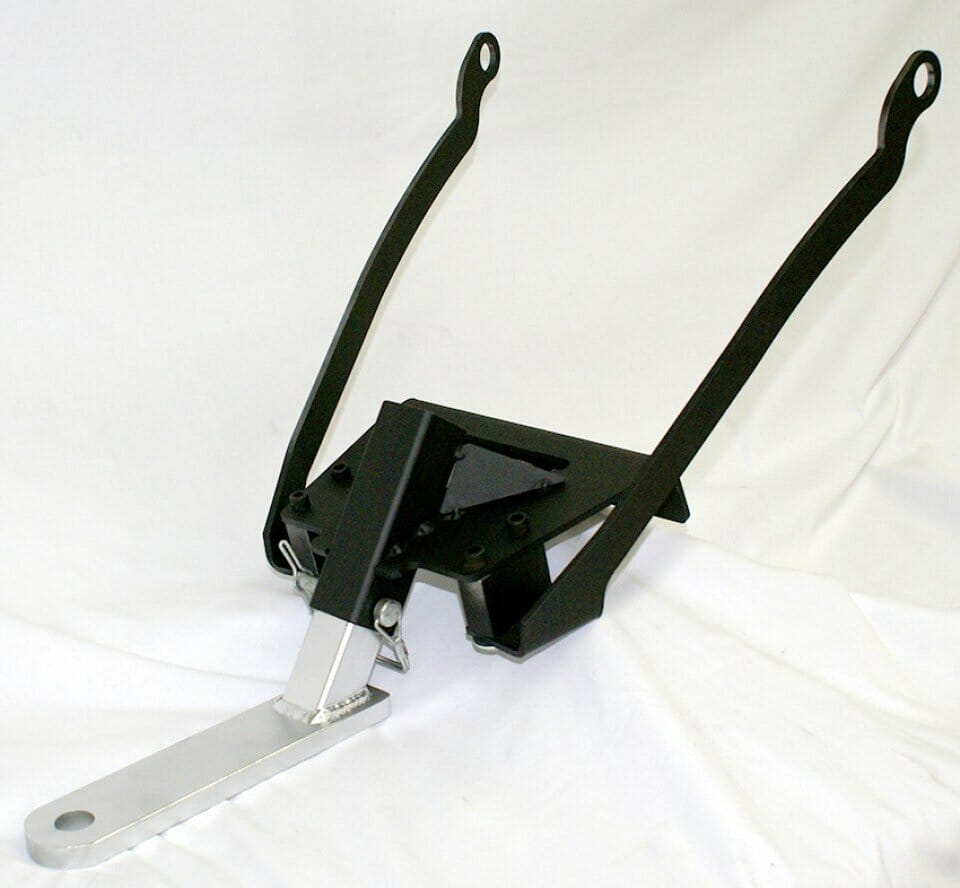

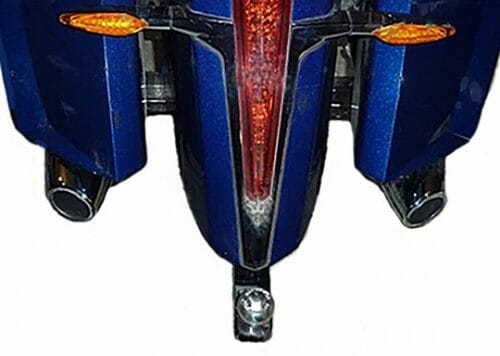

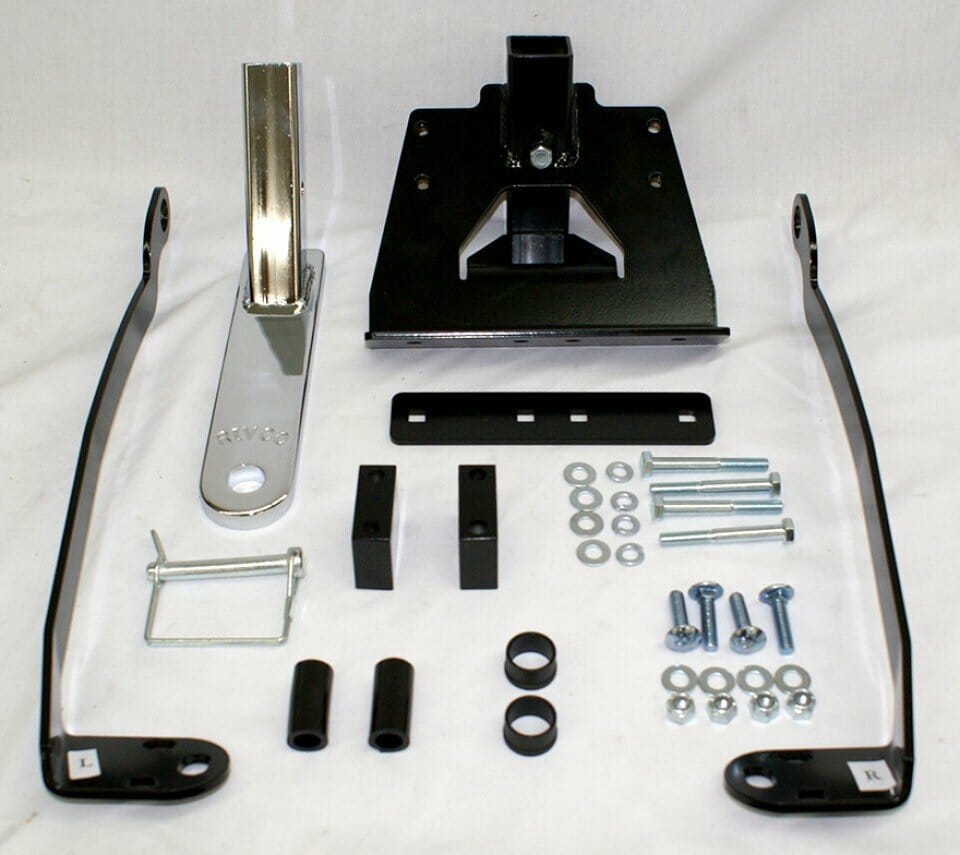

Removing the chrome-plated tongue is as simple as pulling the retaining pin and the tongue out of the receiver. The black powder coated, high-tensile steel hitch frame stays hidden on the bike without the tongue in place. Although not included with our trailer hitch, we offer our GL18007-C tow ball sold separately.
Maximum recommended tongue weight of the VCC007 hitch is 60 lbs. Maximum recommended tow weight of the VCC007 is 600 lbs. Do not exceed the motorcycle manufacturer maximum axle weight when towing.
Will installing a trailer hitch void my motorcycle warranty? No, in 1975 the federal government passed a set of laws called the Magnuson-Moss Warranty Act. This act states your vehicle warranty cannot be voided or canceled for using any non-original equipment manufacturer (O.E.M.) part or accessory (like our trailer hitch) unless the manufacturer of the vehicle can prove the use of this non-O.E.M. part or accessory caused a failure of any part or parts on the vehicle. We encourage you to research the Magnuson-Moss act then share your findings with your dealer if they tell you installing our trailer hitch or any of our accessories will void your warranty.
What wiring components will I need to purchase to complete the circuit between my motorcycle and my trailer? Wiring your VCC007 trailer hitch is very simple with our plug-n-play components. Just follow the numbered steps below to determine all the components you will need for your motorcycle model.
1. First, you will need our VCC007-49 sub-harness to plug into your factory tail light wiring.
2. Determine if your trailer is a four or five wire system. The motorcycle models we designed the VCC007 trailer hitch to fit use a four-wire CAN-bus wiring system from the factory. If your trailer is a four-wire trailer system, proceed to step three. If your trailer is a five-wire system, you will need the VCC007-50 CAN-bus signal converter before moving on to step three.
3. Both four and five wire trailer systems will require the use of our TWC003 An isolator is like a multi-channel relay pulling power for your trailer lights directly from the motorcycle battery to prevent over-loading your motorcycle tail light wiring.
We understand that trailer wiring can seem complicated and we are here to help. If you have any questions, please feel free to contact us during our business hours via telephone at 262-763-8222 or anytime via email at firstname.lastname@example.org.
Fitment: The VCC007 trailer hitch fits 2010 -2016 Victory Cross Country models.
- 13.00 lbs
- 16 × 12 × 6 in
